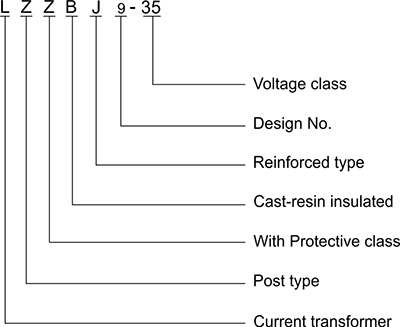

Code and implication?
Technical parameters
Rated primary current: 5 ~ 2500A;
Rated secondary current: 5A or 1A
Rated voltage: 35 KV;
Measurement accuracy level: 0.2S, 0.5S, 0.2,0.5
Protection accuracy level: 5P15, 5P20
Product surface creepage distance: II grade pollution level;
Power factor of the load: COSΦ = 0.8 (hysteresis);
Product standard: GB1208-2006 "current transformer";
5P15 level in the rated load, the exact limit factor of 15;
5P20 level in the rated load, the exact limit factor is 20;

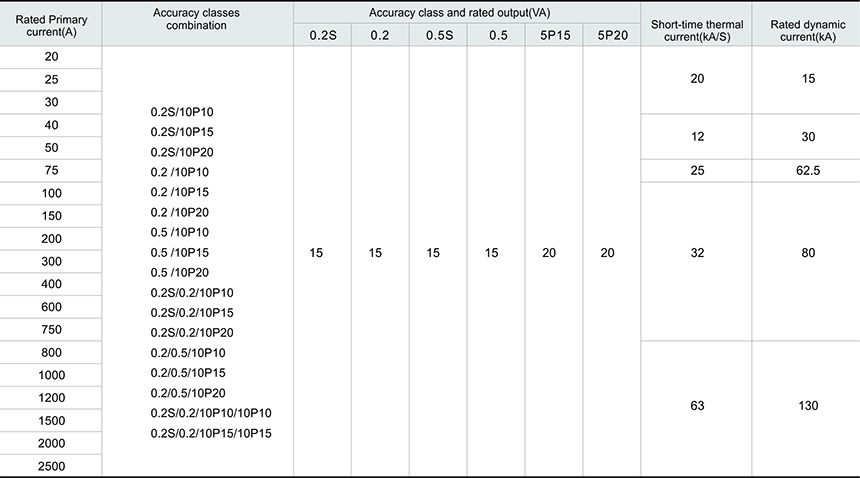

Other technical parameters in the table below (secondary current 5A).
Technical parameters

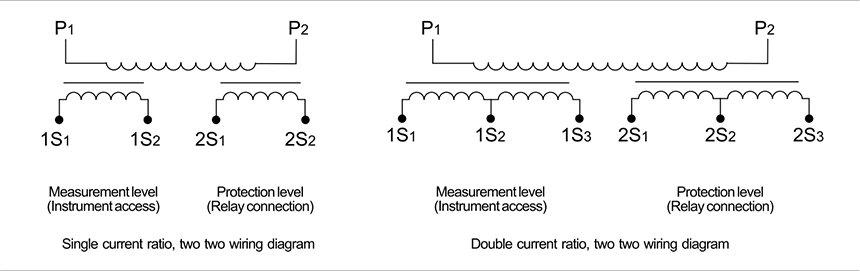

Note: dual current ratio products, 1S1-1S2, 2S1-2S2 for small current ratio; 1S1-1S3, 2S1-2S3 for high current ratio
For example, the current ratio is 50-100/5 A; P1-P2/1S1-1S2, 2S1-2S2 is 50/5, AConnect P1-P2/1S1-1S3, 2S1-2S3 to 100/5 A
Special reminder: dual current ratio products,
When using a small current ratio, two times 1S1-1S2, 2S1-2S2, the 1S3, 2S3, empty, no wiring;
The use of high current ratio, two times 1S1-1S3, 2S1-2S3, the 1S2, 2S2 null, no wiring;

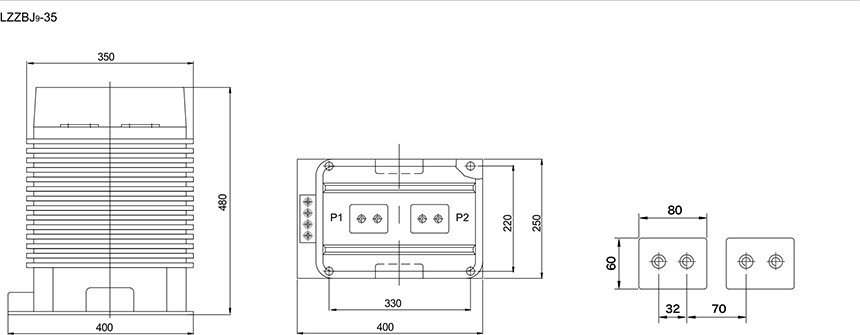

Outline dimensions
